Time switch MTK-2
- built using most recent and advanced microprocessor technologies
- easily programmed using buttons
- tested and certified according to standard EN 62054-21:2004
Options:
- it can operate as ripple control receiver when ripple control system is started
- output for the maxigrafs (15, 30 and 45 minutes)
- remote parameter control using electrical network according to DIN 43861-301 and DIN 43861-302
Technical data:
| Type | MTK-2 | |
|---|---|---|
| Supply voltage | Un | 230 V,100V(+15%,-20%) |
| Supply frequency | fn | 50 Hz |
| Power consumption | < 2 W/11,6 VA cap. | |
| Impulse voltage test | 8 kV, 1,2/50 μs | |
| Rated control frequency | 183,33 do 1200 Hz | |
| Operating voltage Uf | 0,5% Un (programmable) | |
| Non-operating voltage Unf | 0,3% Un (programmable) | |
| Rated breaking voltage Uc | 250 V | |
| Number of output switches | 1 to 4 | |
| Rated breaking current Ic | Re1-4 | 16 A, cos φj=1 |
| Rated breaking current Ic | Re1-3 | 25 A, cos φ=1 |
| Rated breaking current Ic | Re1-3 | 40 A, cos φ=1 |
| Rated breaking current Ic | Re1-3 | 60 A, cos φ=1 |
| Number of operations of the output switches |
30 000 operations | |
| Switch contacts | Re1-3 | 1 x changeover contacts potentialfree |
| Re4 | 1x normally closed contact | |
| Accuracy | ±0,5 s/day | |
| Operation reserve | 150 hours | |
| Protection degree against water and dust |
IP 51 | |
| Operating temperature range | -40 to +70 °C | |
| Storage temperature range | -40 to +70 °C | |
| Standards | EN 62054-11:2004 EN 62054-21:2004 EN 62052-21:2004 |
|
| Communication interface | optical port | EN 61107 |
| Communication protocol | EN 61107, C mode | |
| Data transmission rate | 4800 Bd | |
| Dimensions | 175 x 105 x 68 mm | |
| Weight | 0,45 kg |

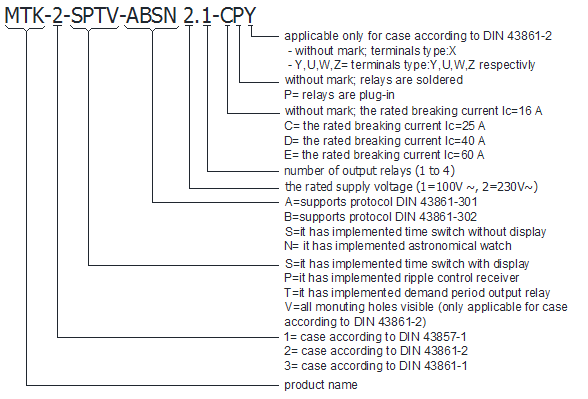

Order codes:

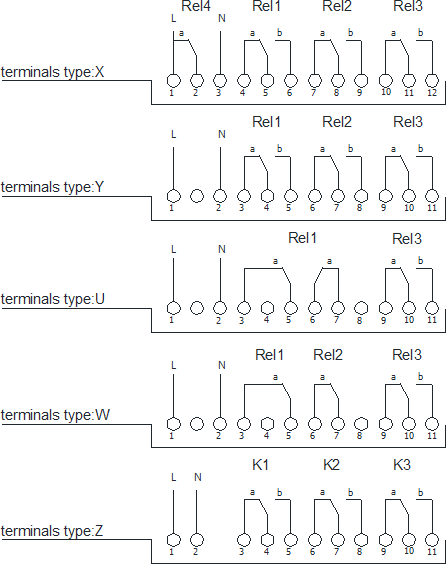

Terminal markings:
