Ripple control receiver UPMTK-3 for street lighting
- built using most recent and advanced microprocessor technologies
- suitable for installation in street lighting pylons
- case according to DIN 43861-1
- it can swich two diferent lamps, whole-night and half-night lighting
- it has very selective input digital filter
- IR communication interface according to EC61107
- tested and certified according to standard EN 62052-21, EN 62054-11
- remote parameter control using electrical network according to DIN 43861-301 or DIN 43861-302
Technical data:
| Type | UPMTK-3 | |
|---|---|---|
| Supply voltage | Un | 230 V,100V(+15%,-20%) |
| Supply frequency | fn | 50 Hz |
| Power consumption | < 2 W/11,6 VA cap. | |
| Impulse voltage test | 8 kV, 1,2/50 μs | |
| Rated control frequency | 183,33 do 1200 Hz | |
| Operating voltage Uf | 0,5% Un (programmable) | |
| Non-operating voltage Unf | 0,3% Un (programmable) | |
| Rated breaking voltage Uc | 250 V | |
| Number of output switches | 1 to 2 | |
| Rated breaking current Ic | Re1-2 | 16 A, cos φ=1 |
| Number of operations of the output switches |
30 000 operations | |
| Accuracy | ±0,5 s/day | |
| Operation reserve | 150 hours | |
| Protection degree against water and dust |
IP 54 | |
| Operating temperature range | -20 to +55 °C | |
| Storage temperature range | -25 to +70 °C | |
| Standards | EN 62052-21, EN 62054-11 | |
| Communication interface | optical port | EN 61107 |
| Communication protocol | EN 61107, C mode | |
| Data transmission rate | 4800 Bd | |
| Dimensions | 156 x 71,6 x 51 mm | |
| Weight | 290 g |

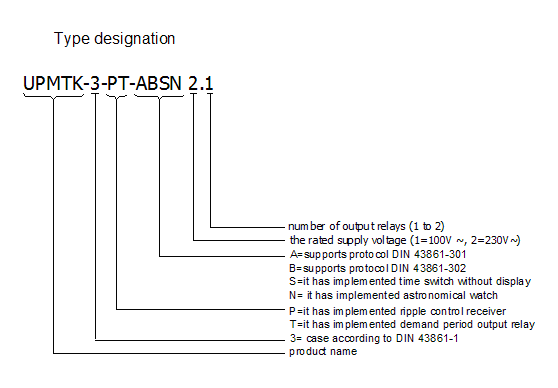

Order codes:
